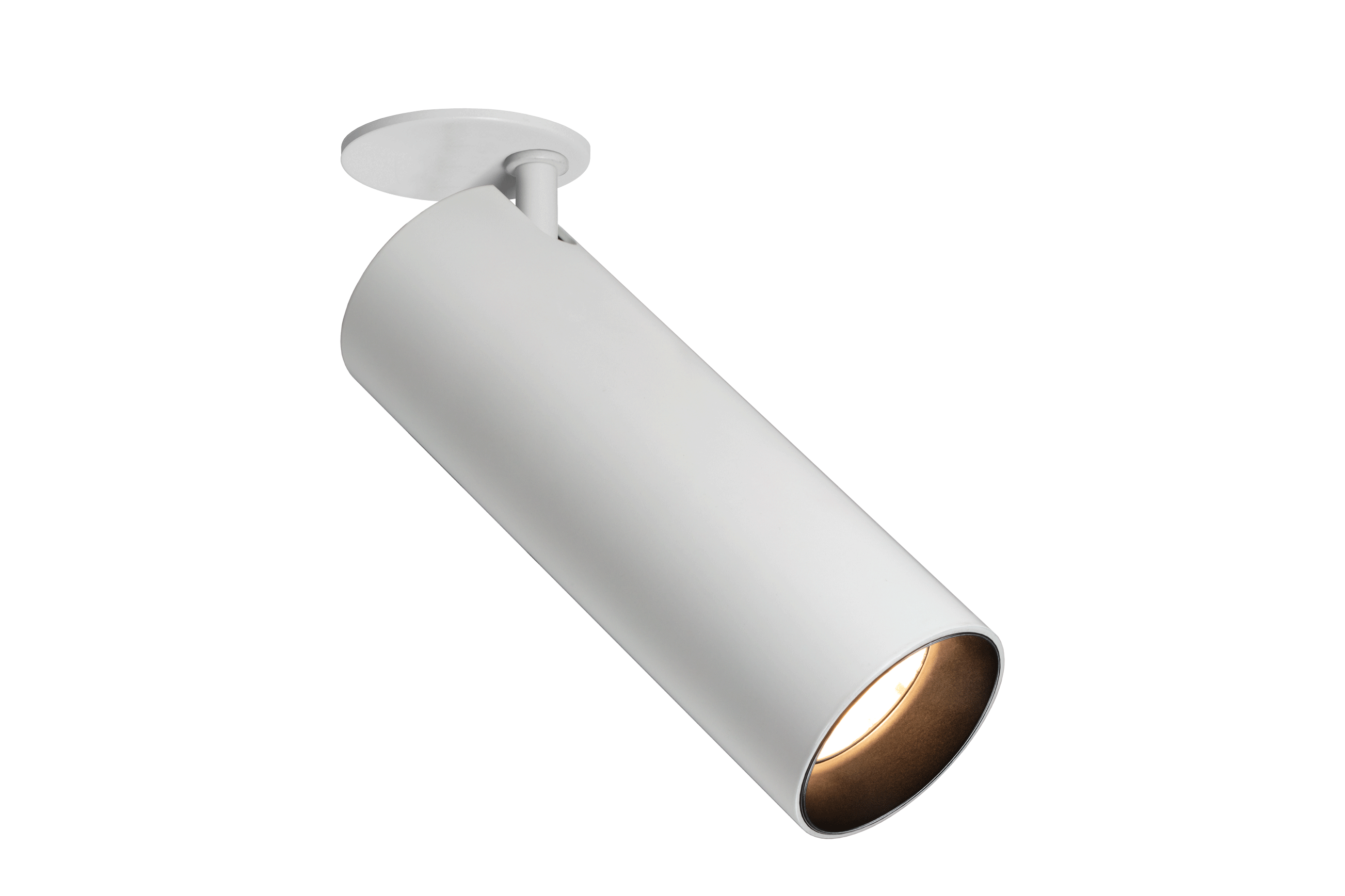

TubeLED Mini Quantum - MonoPoint

TubeLED Mini Quantum with up to 2003lm delivered lumens and over 140lm/cctw to achieve Part L compliant.

60mm diameter LED spotlight with monopoint mounting and remotely located driver.

Available in White and Black finish. Supplied with anti-glare black baffle as standard - other metalised baffle finishes are available.

Specification

  • Diameter:Ø60mm
  • Length:169mm
  • Ingress Protection:IP20
  • Integral Dimming options:Phase/1-10V/DALI
  • Tilt:90°
  • Rotation:355°

Available light sources

Light source: TubeLED Mini Quantum High Efficacy

High Efficacy Quantum LED spotlight

  • LED Power:8W
  • Delivered Luminous Output:966-1168lm
  • Drive Current:200mA
  • Input Voltage:34V
  • CCT:2700K/3000K/4000K
  • Beam Option:NF/MF/FL/WFL
  • CRI:>90 CRI

Product Code: TL6031/Q-HE

Light source: TubeLED Mini Quantum High Output

High Output Quantum LED spotlight

  • LED Power:14W
  • Delivered Luminous Output:1652-2003lm
  • Drive Current:350mA
  • Input Voltage:34V
  • CCT:2700K/3000K/4000K
  • Beam Option:NF/MF/FL/WFL
  • CRI:>90 CRI

Product Code: TL6031/Q-HO
