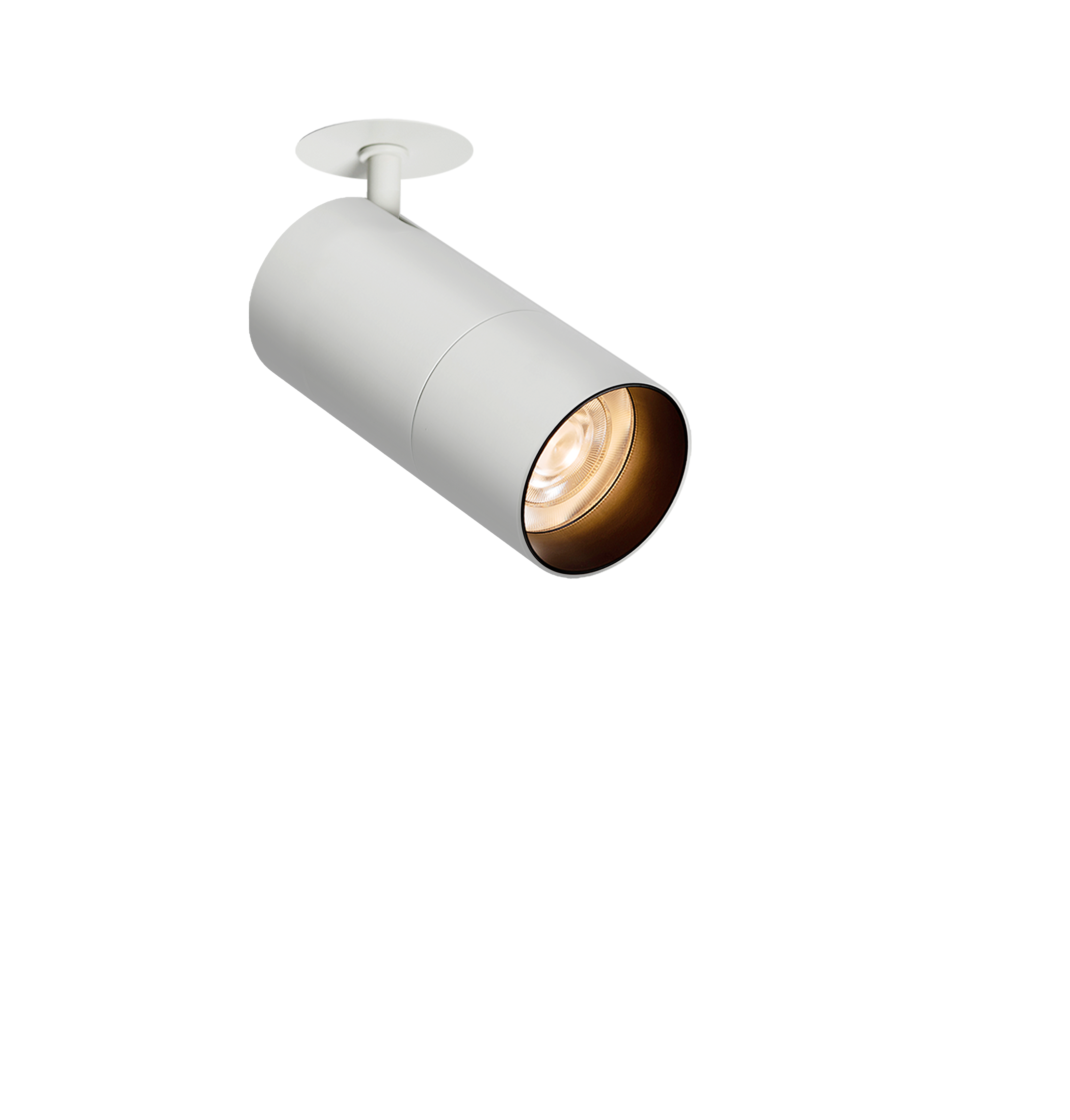

TubeLED Mini MonoPoint

TubeLED Mini for surface mount with 12°, 24°, 38° and 55° beam options and up to 997 delivered lumens.

60mm diameter LED spotlight with 3 different mounting options - Surface MonoPoint, Recessed MonoPoint and Trimless MonoPoint.

Available in White and Black finish. Supplied with anti-glare black baffle as standard - other metalised baffle finishes are available.

The TubeLED Mini utilises the LED50 ONE family of modules and complete with a REMOTE driver with a range of dimming options available.

Superspot, warm dimmming, tuneable white and high output versions of the TubeLED Mini are also available.

Wallwash version with kick reflector and asymmetric diffusing lens.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

  • Aperture:Ø60mm
  • Length:133mm
  • Ingress Protection:IP20
  • Integral Dimming options:Phase/1-10V/DALI
  • Tilt:180°
  • Rotation:355°
  • Ceiling Thickness:25mm MAX

Available light sources

Light source: TubeLED Mini

LED spotlight

  • LED Power:13.6W
  • Delivered Luminous Output:852-997lm
  • Drive Current:350mA
  • Input Voltage:33V
  • CCT:2700K/3000K/4000K
  • Beam Option:12°/24°/38°/55°
  • CRI:90 CRI
  • Dimming Options:Phase and DALI

Product Code: 7100/2-LED
