Soft50 Fixed Trim

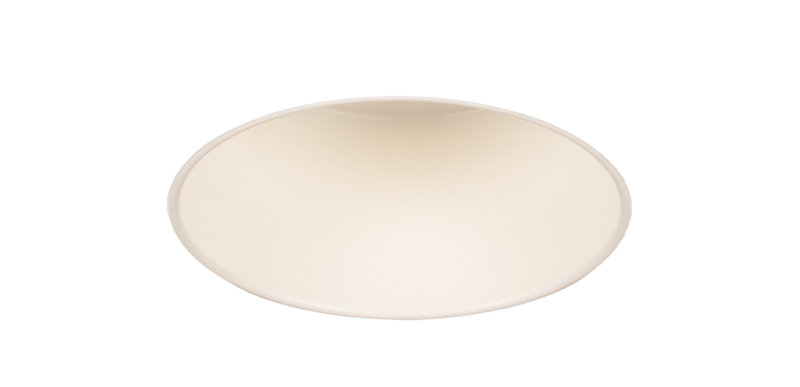

Soft50 fixed downlight with deep regressed light source and supplied with a separate die cast trim for finished ceilings. Available in both White or Black finish as standard.

This product can accommodate our LED35 family of modules.

Specification

Aperture :Ø47mm
Ajustable :No
Overall Dimensions :Ø65mm
First Fix Required :Yes
Ceiling Cut-Out:Ø61mm
Ceiling Thickness :13mm max
Ingress Protection :IP20 or IP44

Available light sources

Light source: LED35 GEN2

35mm diameter LED module specifically designed to offer an MR11 LED option to the Lucent range of LED modules. Max drive Current 350mA. Dimmable with the correct driver type.

Power:6.3W
Source Luminous Output:475-538lm
Drive Current:350mA
Input Voltage:18V
CCT:2200K/2400K/2700K/3000K/4000K
Beam Option:15°/24°/36°
CRI:90 CRI
Dimming Options:Phase, 0-10V and DALI

Product Code: 050-LED-TR
