Part L General - Flare90 Accent Trimless → Lucent Lighting

Part L General - Flare90 Accent Trimless

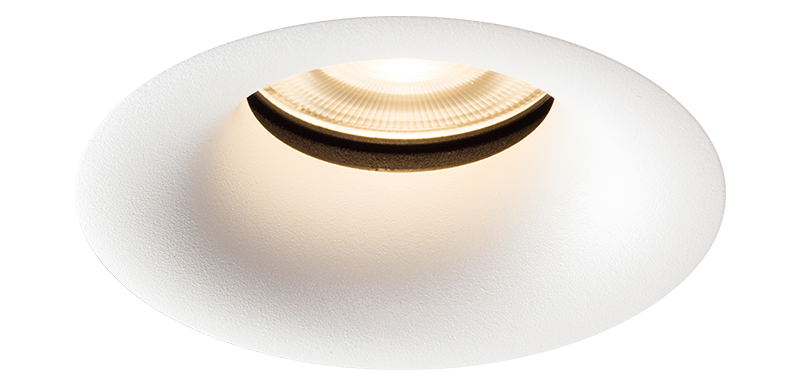

Flare90 accent downlight with flared aperture and supplied with a separate plaster-kit for seamless appearance in plaster ceilings. Available in both White or Black finish as standard.

This product is designed to utilise our LED51HE to be Part L Volume 2: General compliant.

Specification

Aperture:Ø45mm
Adjustable:30°
Overall Dimension:Ø92mm
Ceiling Cut Out:Ø83mm
Ceiling Thickness:20mm MAX
Ingress Protection:IP20 - IP54
First Fit Requirement:Yes
Delivered Efficacy :97-102lm/cctw

Available light sources

Light source: LED50 ONE QUANTUM HE

Introducing the LED50 ONE Quantum High Efficacy series. Choice of 3 colour temperatures and 4 beam options. Designed to run at 200mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

LED Power:6.6W
Source Luminous Output*:1088-1187lm
Drive Current:200mA
Input Voltage:33V
CCT:2700K/3000K/4000K
Beam Option:NF/MF/FL/WFL
CRI:≥90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: 933-FL-LED-PC

Light source: LED50 ONE QUANTUM HE High Output

Introducing the LED50 ONE Quantum HE High Output series. Choice of 3 colour temperatures and 4 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

LED Power:11.9W
Source Luminous Output*:1793-1899lm
Drive Current:350mA
Input Voltage:34V
CCT:2700K/3000K/4000K
Beam Option:NF/MF/FL/WFL
CRI:≥90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth
