Flare55 Accent Trim → Lucent Lighting

Flare55 Accent Trim

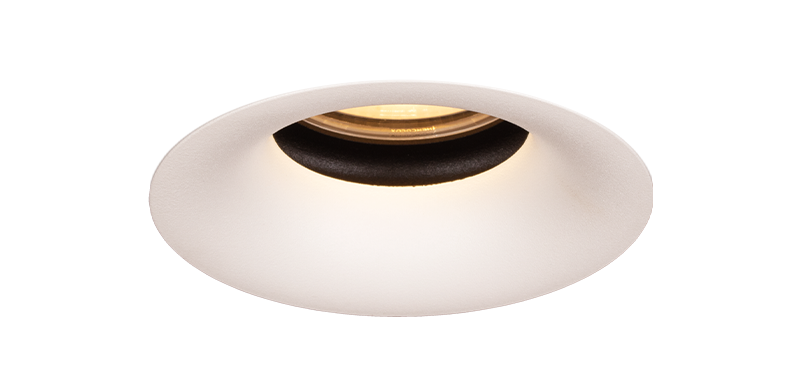

The Flare55 accent downlight with flared aperture and supplied with a separate plaster kit for seamless appearance in plaster-ceilings. Available in both White or Black finish as standard.

This product can accomodate the LED35 family of modules.

Specification

Aperture:Ø30mm
Overall Dimension:Ø55mm
Overall Height:73mm
Required Depth:88mm
Ceiling Cut Out:Ø48mm
Ceiling Thickness:20mm MAX
Ingress Proctection:IP20
First Fix Requirement:Yes

Available light sources

Light source: LED35 GEN2

35mm diameter LED module specifically designed to offer an MR11 LED option to the Lucent range of LED modules. Max drive Current 350mA. Dimmable with the correct driver type.

Power:6.3W
Source Luminous Output:475-538lm
Drive Current:350mA
Input Voltage:18V
CCT:2200K/2400K/2700K/3000K/4000K
Beam Option:15°/24°/36°
CRI:90 CRI
Dimming Options:Phase, 0-10V and DALI

Product Code: 553-LED-TR

LED Module
Spec sheet
Spec pack
