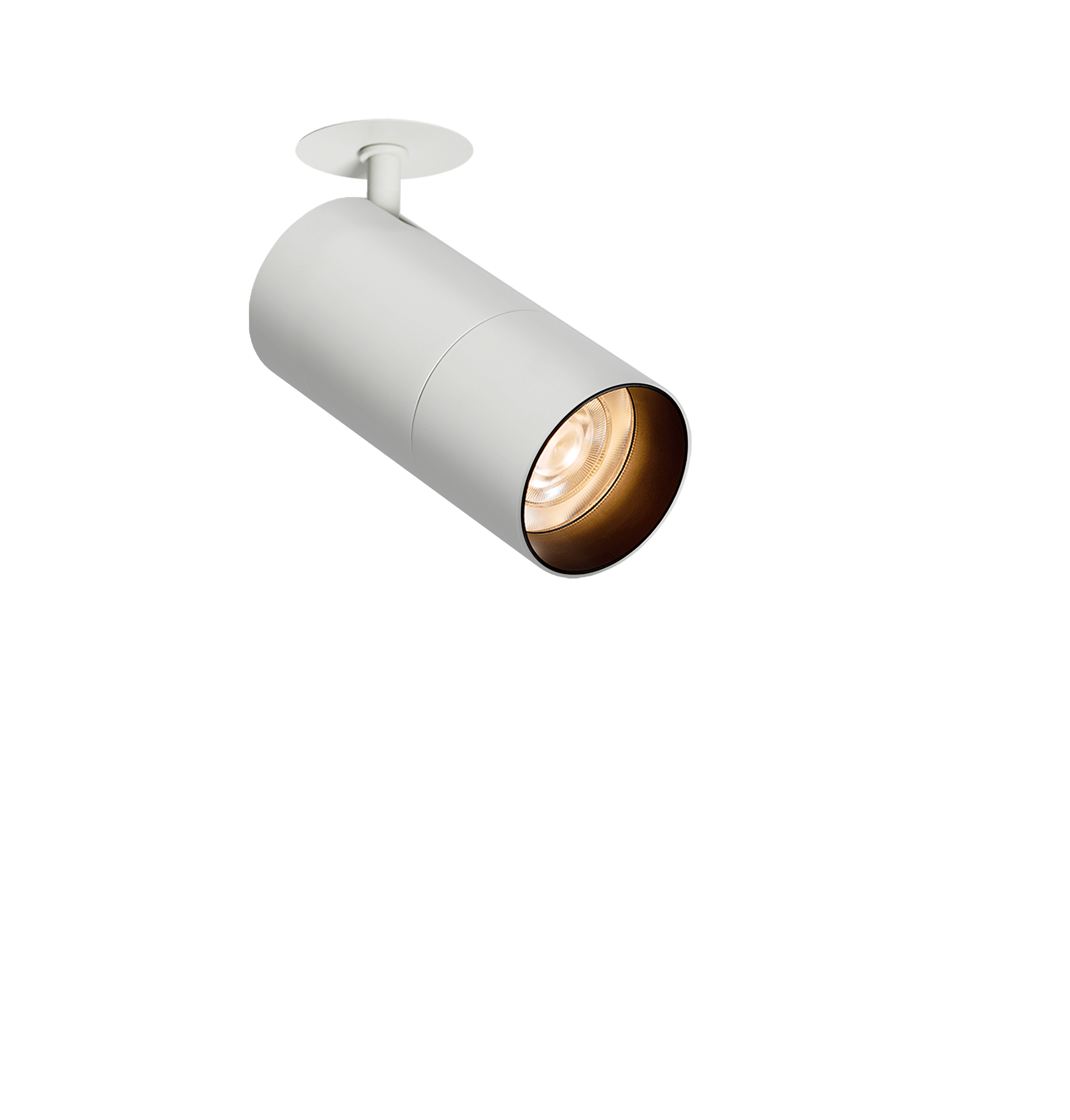

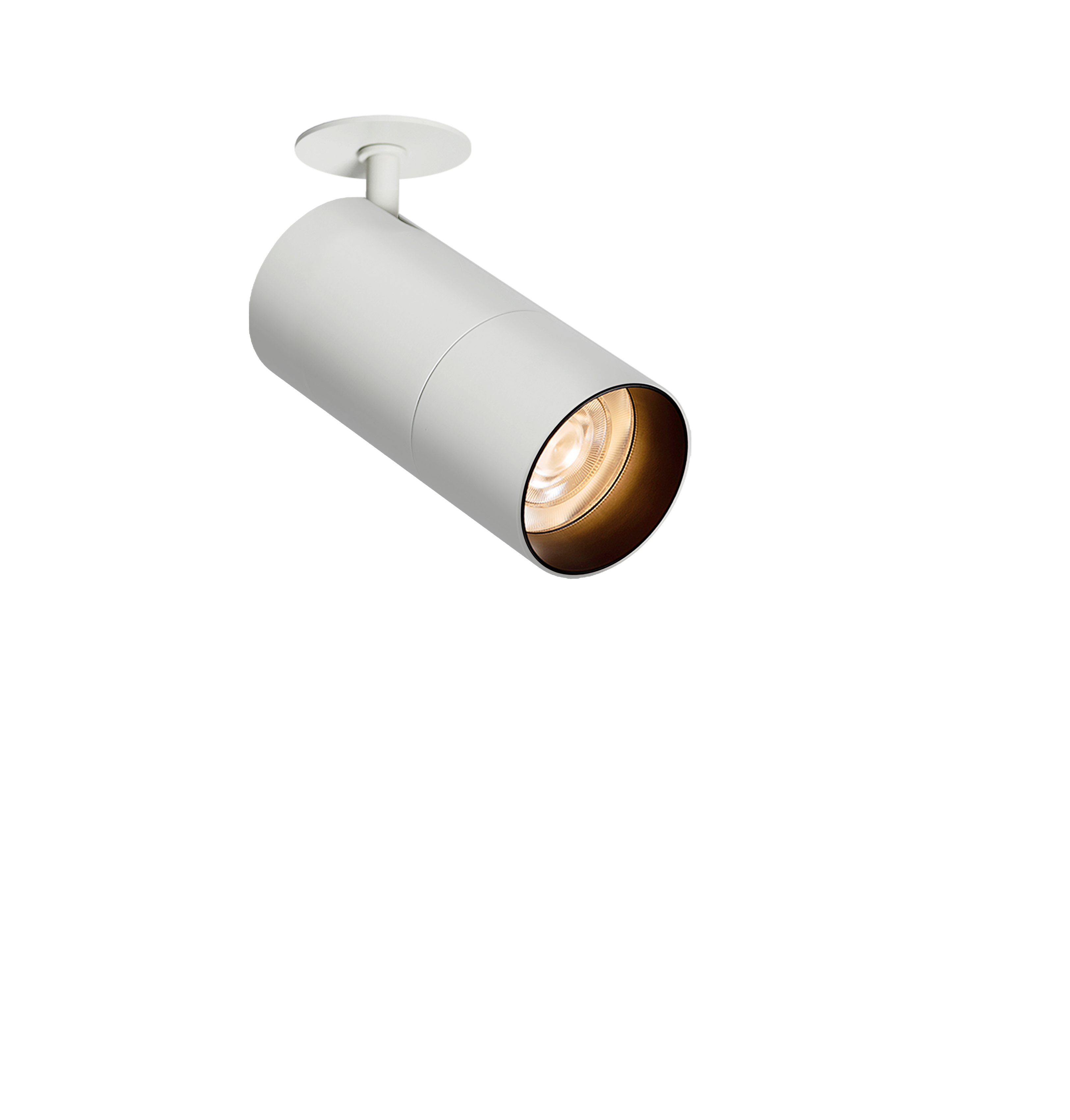

TubeLED Mini TW (Dynamic Tuneable White) MonoPoint

TubeLED Mini TW (Dynamic Tuneable White)for surface mount with a colour range of 2000K to 5000K.

60mm diameter MonoPoint spotlight with 3 different mounting options - Surface MonoPoint, Recessed MonoPoint and Trimless MonoPoint.

Available in White and Black finish. Supplied with anti-glare black baffle as standard - other metalised baffle finishes are available.

The TubeLED Mini requires a REMOTE driver installation in DALI Type 6, DALI Type 8 and Bluetooth dimming.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

  • Aperture:Ø60mm
  • Length:133mm
  • Ingress Protection:IP20
  • Integral Dimming options:Phase/1-10V/DALI
  • Tilt:180°
  • Rotation:355°
  • Ceiling Thickness:25mm MAX

Available light sources

Light source: TubeLED Mini Tuneable White Monopoint

LED Tuneable White Spotlight with Monopoint mounting

  • LED Power:12.5W per channel
  • Delivered Luminous Output:741-848lm
  • Drive Current:700mA per channel
  • Input Voltage:17.9V
  • CCT:5000K-2000K
  • Beam Option:25°/35°
  • CRI:Max 95 CRI
  • Dimming Options:DALI Type 6, DALI Type 8 and Bluetooth

Product Code: 7100TW-LED
