Soft3.5" Color Fixed Flange

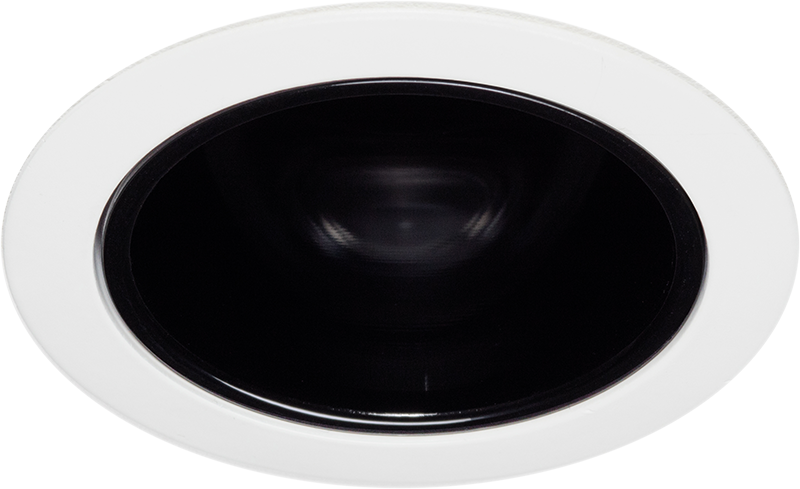

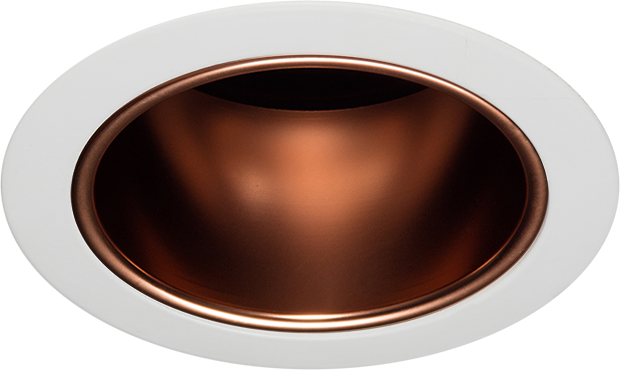

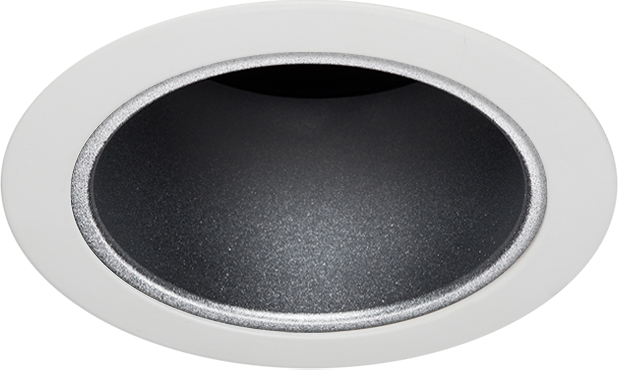

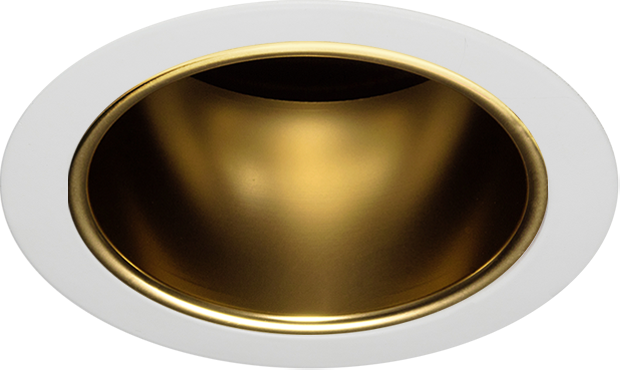

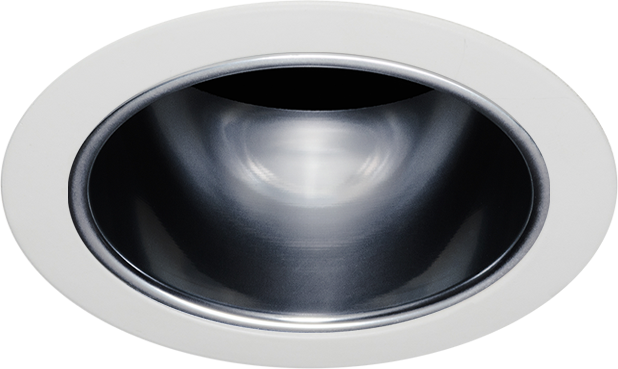

Soft3.5” Color fixed downlight with deep regressed light source with a coloured insert available in a choice of 6 different colours and supplied with a separate die cast trim for finished ceilings. Available in both White or Black finish as standard.

Several housing and tray options available.

This product can accommodate a wide choice of LED light sources including our LED70 ONE family of modules.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

Aperture:Ø3.38"
Overall Dimension :Ø4.72"
Ceiling Cut-Out:Ø4.29"
Ceiling Thickness:1.00"
Ingress Protection:Interior

Available light sources

Light source: LED70 ONE

Introducing the LED70 ONE. 70mm diameter high output LED module. A choice of 3 colour temperatures. Max 700mA. Dimmable with appropriate driver.

LED Power:23W
Source Luminous Output:1910-2167lm
Drive Current:700mA
Input Voltage:33V
CCT:2700K/3000K/4000K
Beam Option:12°/19°/34°
CRI:90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A090-C-LED-TR-XX

Light source: LED70 ONE / ULTRA

Introducing the LED70 ONE / ULTRA. 70mm diameter high output 98CRI LED module. A choice of 2 colour temperatures. Max 700mA. Dimmable with appropriate driver.

LED Power:23W
Source Luminous Output:1507-1618lm
Drive Current:700mA
Input Voltage:33V
CCT:2700K/3000K
Beam Option:12°/19°/34°
CRI:98 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A090-C-LED-TR-XX

Light source: LED70 ONE TuneableWhite

The ProSpex LED70 ONE TuneableWhite from Lucent’s own LED70 series of modules. 2.76” (70mm) diameter single optic LED module. For use in all suitable ProSpex and ProSpex Plus LED luminaires. Max drive Current 1000mA per channel. CCT and Intensity can be controlled with correct driver/control system.

LED Power:23.4W per channel
Source Luminous Output:1833-1903lm
Drive Current:1000mA per channel
Input Voltage:23.4V
CCT:5000K-2000K
Beam Option:19°/23°/42°
CRI:Max 95 CRI
Dimming Options:DALI Type 6, DALI Type 8 and Bluetooth

Product Code: A090-C-LED-TR-XX

Light source: LED70 ONE Ambiance WarmDim

The ProSpex LED570 ONE Ambiance WarmDim from Lucent’s own LED71 series of modules. 70mm diameter LED Module. For use in all suitable ProSpex and ProSpex PlusXL LED luminaires. Max drive current 1000mA. Dimmable with the correct driver type.

LED Power:23W
Source Luminous Output:1770-1822lm
Drive Current:1000mA
Input Voltage:23.0V
CCT:2700K-2000K / 3000K-2000K
Beam Option:19°/23°/42°
CRI:Max 95 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A090-C-LED-TR-XX
