Plus3.5" Pyramidal LP Low Profile Fixed Flange Downlight → Lucent Lighting

Plus3.5" Pyramidal LP Low Profile Fixed Flange Downlight

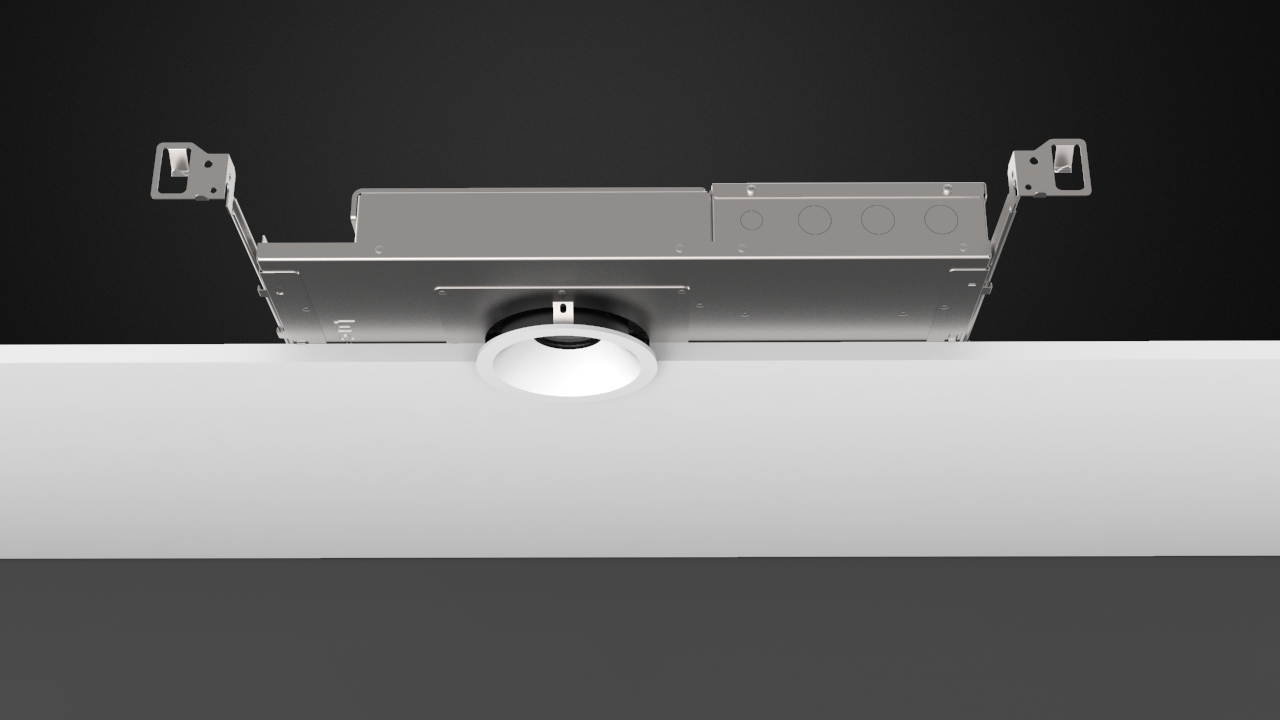

Plus3.5" Pyramidal LP Low Profile Fixed Trim Downlight supplied with a separate die cast installation kit with overlap flange for finished ceilings. Available in both White or Black finish as standard.

Low Profile housing option.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

Aperture:3.54" x 3.54"
Overall Dimension:4.41" x 4.41"
First Fix Requirement :Yes
Ceiling Cut Out:4.09" x 4.09"
Ceiling Thickness:1.00"
Ingress Protection:Interior / Damp

Available light sources

Light source: Plus Pyramidal - Low Profile Shallow Housing LED

Plus Pyramidal - Low Profile Shallow Housing LED

System Power:16.3W
Delivered Luminous Output:TBC
Drive Current:400mA
Input Voltage:34.6V
CCT:2700K/3000K/4000K
Beam Option:17°/24°/35°/55°
CRI:90 CRI
Dimming Options:Phase and 0-10V

Product Code: ALP090+LED-TR-SQ
