Plus3.5" Conical LP Low Profile Fixed Trimless Downlight

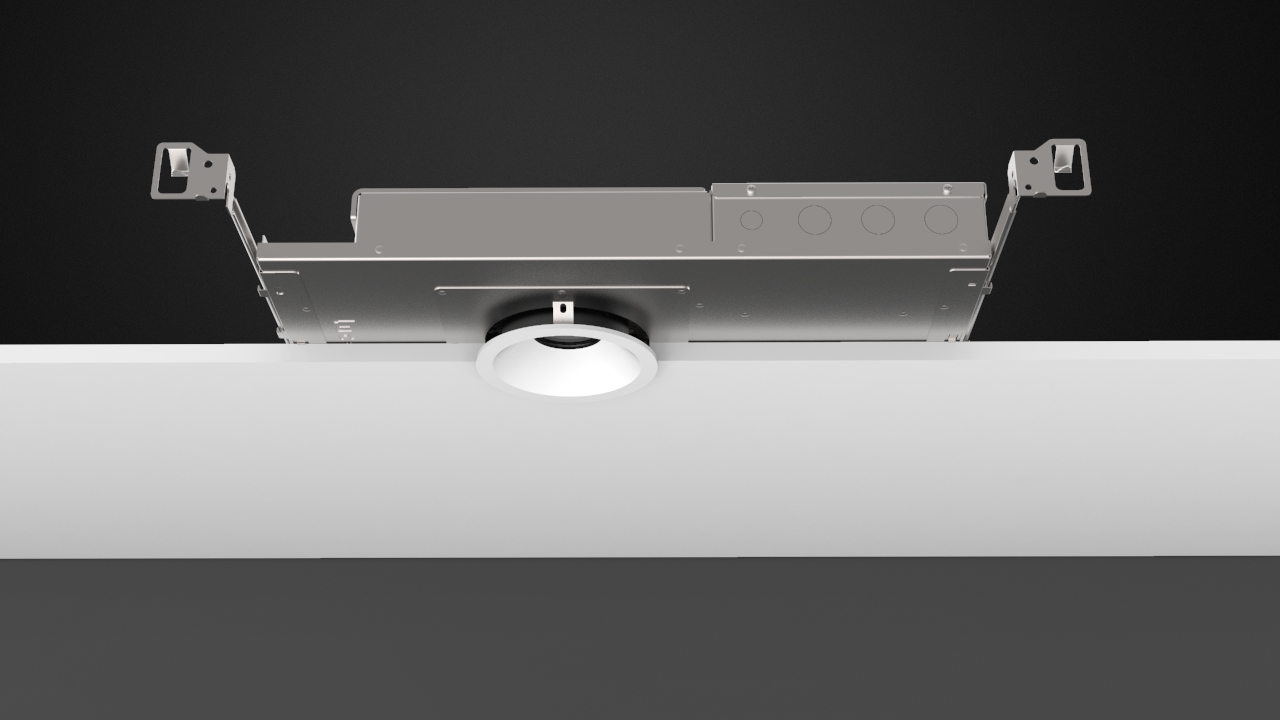

PPlus3.5" Conical LP Low Profile Fixed Trimless downlight supplied with a separate die cast mud in kit for seamless appearance in plaster / drywall ceilings. Available in both White or Black finish as standard.

Low Profile housing option.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

Aperture:Ø3.54"
Overall Dimension:Ø3.86"
Ceiling Cut Out:Ø4.17"
First Fix Requirement:Yes
Ceiling Thickness :1.00"
Ingress Protection:Interior / Damp

Available light sources

Light source: Plus Conical - Low Profile Shallow Housing LED

Plus Conical - Low Profile Shallow Housing LED

System Power:16.3W
Delivered Luminous Output:1123-1181lm
Drive Current:400mA
Input Voltage:34.6V
CCT:2700K/3000K/4000K
Beam Option:17°/24°/35°/55°
CRI:90 CRI
Dimming Options:Phase and 0-10V

Product Code: ALP090+LED-TL
