Plus3.5" Bevel Square LP Low Profile Fixed Flange Downlight → Lucent Lighting

Plus3.5" Bevel Square LP Low Profile Fixed Flange Downlight

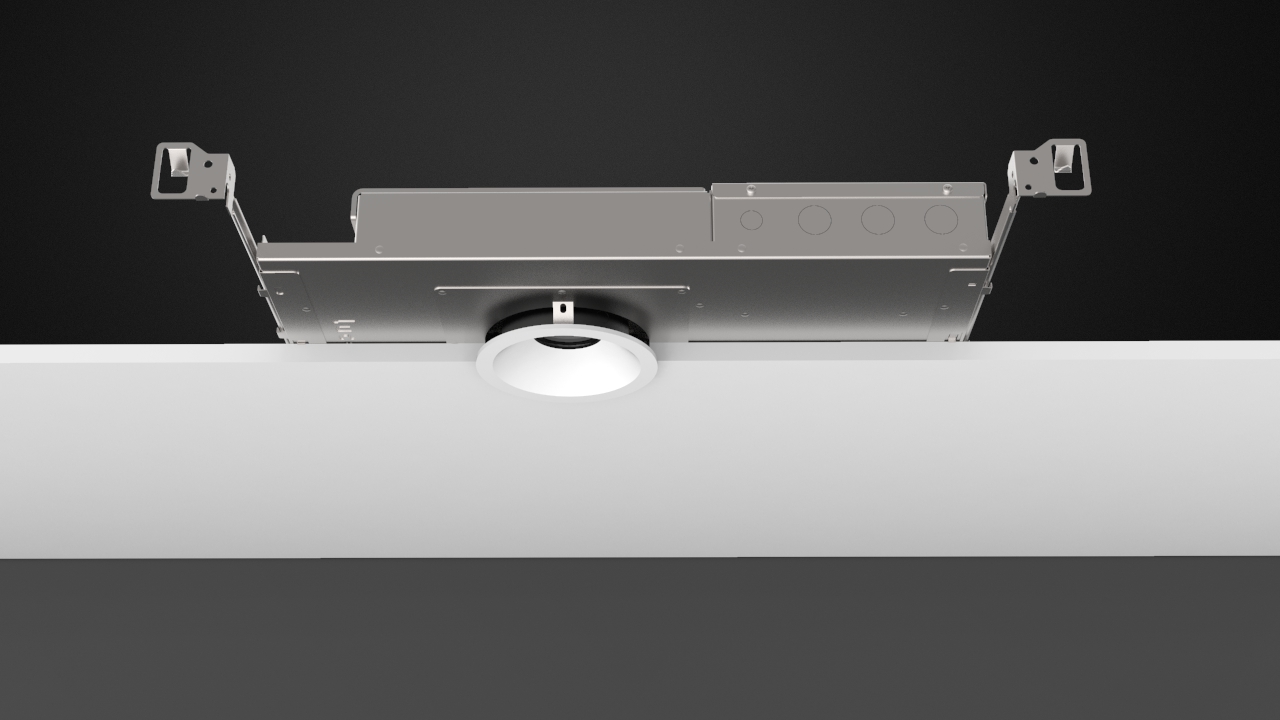

Plus3.5" Bevel LP Low Profile fixed trim downlight with 55 x 55mm tapered black aperture and supplied with a separate die cast installation kit with overlap flange for finished ceilings. Available in both White or Black finish as standard.

Low Profile housing option.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

Aperture:2.16" x 2.16"
Overall Dimension:4.41" x 4.41"
Ceiling Cut Out:4.07" x 4.07"
First Fix Requirement:Yes
Ceiling Thickness:1.00"
Ingress Protection:Interior / Damp

Available light sources

Light source: Plus Square Bevel - Low Profile Shallow Housing LED

Plus Square Bevel - Low Profile Shallow Housing LED

System Power:16.3W
Delivered Luminous Output:TBC
Drive Current:400mA
Input Voltage:34.6V
CCT:2700K/3000K/4000K
Beam Option:17°/24°/35°/55°
CRI:90 CRI
Dimming Options:Phase and 0-10V

Product Code: ALP090+33-LED-TR-SQ
