Micro40 Conical Trimless → Lucent Lighting

Micro40 Conical Trimless

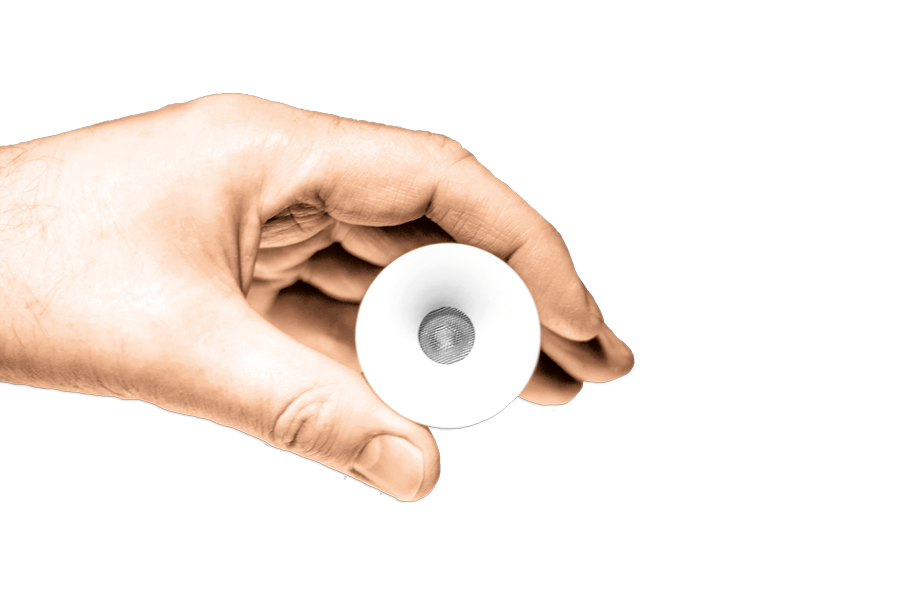

Micro40 Conical Trimless round fixed miniature downlight with black anti glare ring and supplied with a separate plaster-kit for flush appearance in plaster-ceilings. Available in both White and Black finishes as standard.

Micro40 family utilises the XPG2 LED in two colour options 2700K and 3000K and 4 beam angles - 15°, 25°, 30° and elliptical beam 18° x 33°.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

Overall Dimension:Ø1.57"
Overall Height:1.33"
First Fix Requirement:Yes
Ceiling Cut Out:Ø1.45"
Ceiling Thickness:0.59"
Ingress Protection:IP44

Available light sources

Light source: Micro40 LED

Micro40 Integral LED

LED Power:1.5W
Luminous Output:Please refer to specification sheet
Drive Current: 500mA
Input Voltage:3V
CCT:2700K/3000K/4000K
Beam Option:15°/25°/30°/18°x33°
CRI:90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: M40-CL-TL
