InWall Horizontal

4.00" x 1.70" recessed wall and step floor marker with linear aperture for interior and exterior installations.

InWall Horizontal front plates are available in 7 different finishes and manufactured in either Stainless Steel 316, Solid Bronze or Aluminium.

Can be installed in solid walls with mounting box accessory.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

  • Aperture:3.19" x 0.69"
  • Overall Dimension:4.00" x 1.70"
  • Cut-Out:3.94" x 1.50"
  • Required Depth:2.21"
  • Cut Out - Solid Wall:3.94" x 1.50"
  • Required Depth - Solid Wall:1.97"
  • First Fix Requirement:Yes
  • Ingress protection:IP66

Available light sources

Light source: InWall Horizontal LED

InWall Horizontal Integral LED

  • LED Power:4W
  • Luminous Output:Please refer to specification sheet
  • Constant Voltage:24V
  • CCT:2700K/3000K/4000K
  • CRI:90 CRI
  • Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: IW1043

Products similar to InWall Horizontal

InWall40

Product information

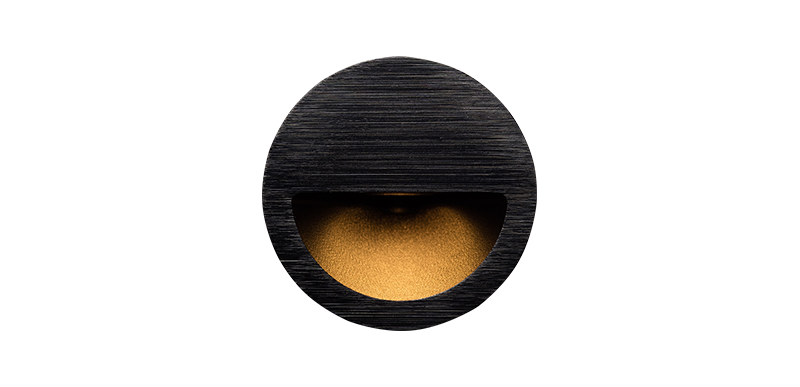

InWall40 Eyelid
