EasyFit PlusMini Conical Accent Trimless

EasyFit PlusMini Conical accent downlight supplied with a separate plaster in kit for seamless appearance in plaster ceilings. Available in both White or Black finish as standard.

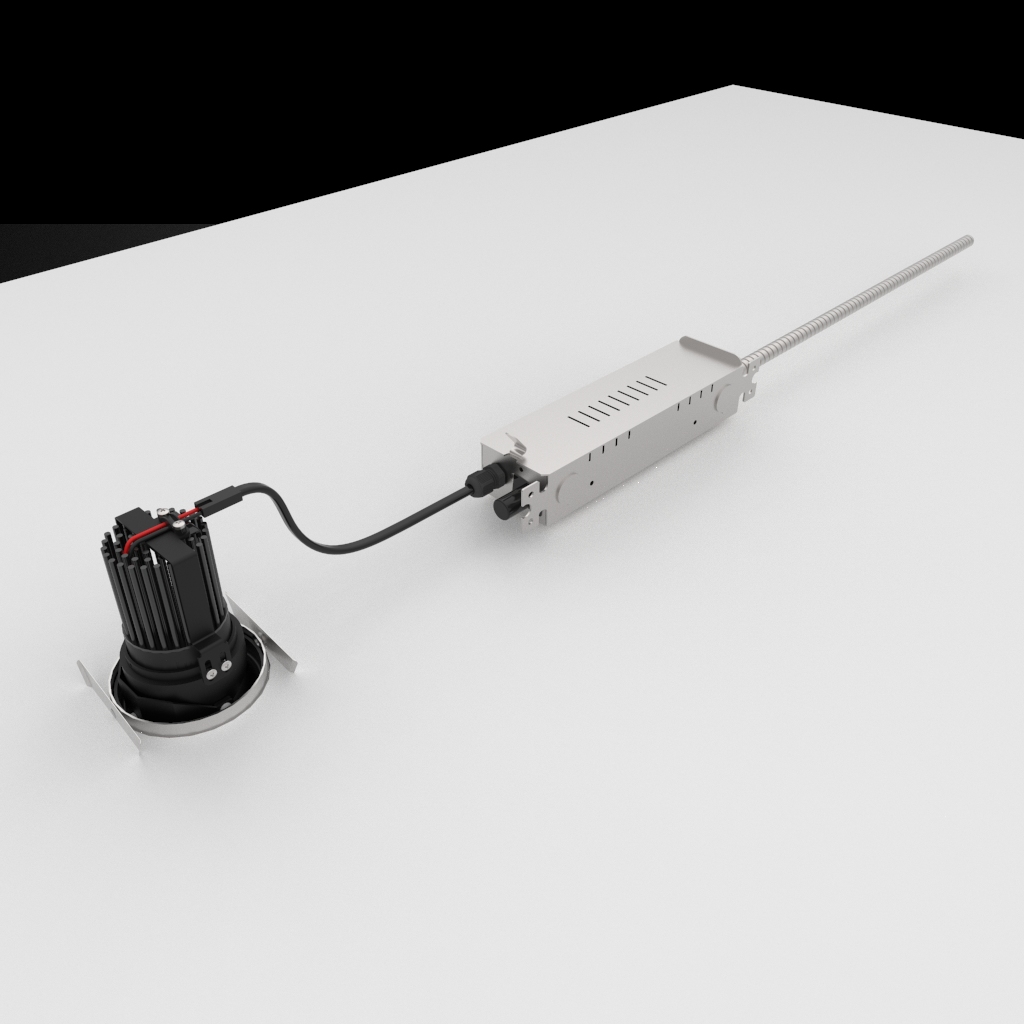

The all NEW EasyFit housing for retrofit installations into existing ceilings. Simple to install method allows installation from below the ceiling. A remote driver box and a plug and play tethered power supply.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

  • Aperture:Ø74mm
  • Adjustable :35°
  • Overall Dimension:80mm
  • Ceiling Cut-Out :82mm
  • First Fix Requirement:Yes
  • Ceiling Thickness:25mm
  • Ingress Protection :IP20 / IP44

Available light sources

Light source: LED50 ONE GEN2

Introducing the LED50 ONE Generation 2. Choice of 3 colour temperatures and 3 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

  • LED Power:11.6W
  • Source Luminous Output*:1078-1206lm
  • Drive Current:350mA
  • Input Voltage:33V
  • CCT:2700K/3000K/4000K
  • Beam Option:12°/24°/38°/55°
  • CRI:90 CRI
  • Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A753+LED-TL

Light source: LED50 ONE / ULTRA

Introducing the LED50 ONE / ULTRA. Single optic high output 98CRI LED. Choice of 2 colour temperatures and 3 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

  • LED Power:11.6W
  • Source Luminous Output:915-982lm
  • Drive Current:350mA
  • Input Voltage:33V
  • CCT:2700K/3000K
  • Beam Option:12°/24°/38°/55°
  • CRI:98 CRI
  • Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A753+LED-TL
