EasyFit Flare3.6 Fixed Flange → Lucent Lighting

EasyFit Flare3.6 Fixed Flange

EasyFit Flare fixed downlight with flared aperture and supplied with a separate installation kit with overlap flange for finished ceilings. Available in both White or Black finish as standard.

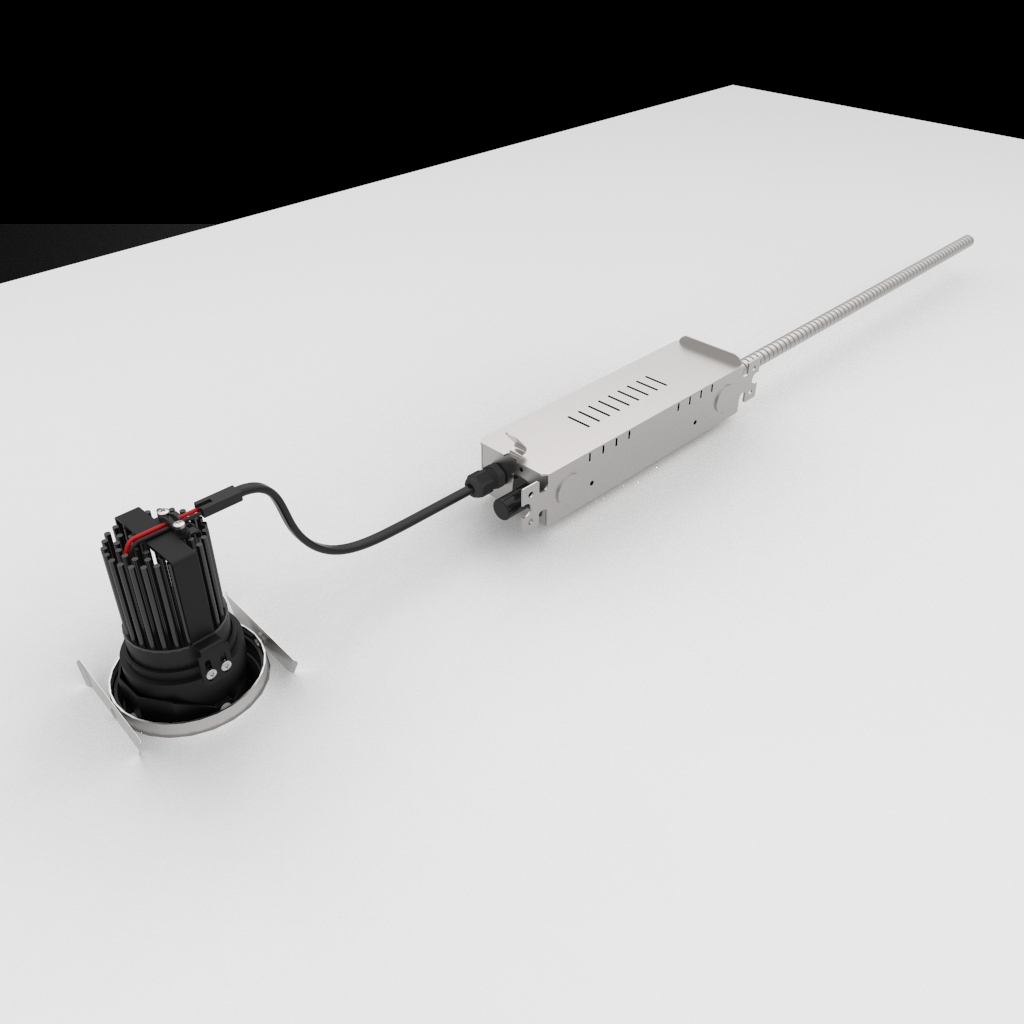

The all NEW EasyFit housing for retrofit installations into existing ceilings. Simple to install method allows installation from below the ceiling. A remote driver box and a plug and play tethered power supply.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

Aperture:Ø45mm
Overall Dimension:Ø92mm
Ceiling Cut Out:Ø83mm
Ceiling Thickness:25mm MAX
Ingress Protection:IP20 - IP54
First Fix Requirement:Yes

Available light sources

Light source: LED50 ONE QUANTUM HE

Introducing the LED50 ONE Quantum High Efficacy series. Choice of 3 colour temperatures and 4 beam options. Designed to run at 200mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

LED Power:6.6W
Source Luminous Output*:1088-1187lm
Drive Current:200mA
Input Voltage:33V
CCT:2700K/3000K/4000K
Beam Option:NF/MF/FL/WFL
CRI:≥90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A930-FL-LED-PB

Light source: LED50 ONE QUANTUM HO

Introducing the LED50 ONE Quantum High Output series. Choice of 3 colour temperatures and 4 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

LED Power:11.9W
Source Luminous Output*:1793-1899lm
Drive Current:350mA
Input Voltage:34V
CCT:2700K/3000K/4000K
Beam Option:NF/MF/FL/WFL
CRI:≥90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A930-FL-LED-PB

Light source: LED50 ONE GEN3

Introducing the LED50 ONE GEN3 - the latest evolution in our popular LED50 series. Choice of 5 colour temperatures and 4 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

* For delivered lumens, refer to the luminaire data sheet.

Power:12.6W
Luminous Output:1108-1258lm
Drive Current:350mA
Input Voltage:36V
CCT:2200K/2400K/2700K/3000K/4000K
Beam Option:SP/MF/FL/WFL
CRI:>90 CRI
Lifetime:L70 B10 105,000hrs @ Ta 25°C
Dimming Options: Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A930-FL-LED-PB
