EasyFit Edge4.25" Wallwash Trimless

EasyFit Edge4.25" wallwash downlight with Ø1.65" black Edge aperture and supplied with a separate mud in kit for seamless appearance in plaster/drywall ceilings. Available in both white or black finish as standard.

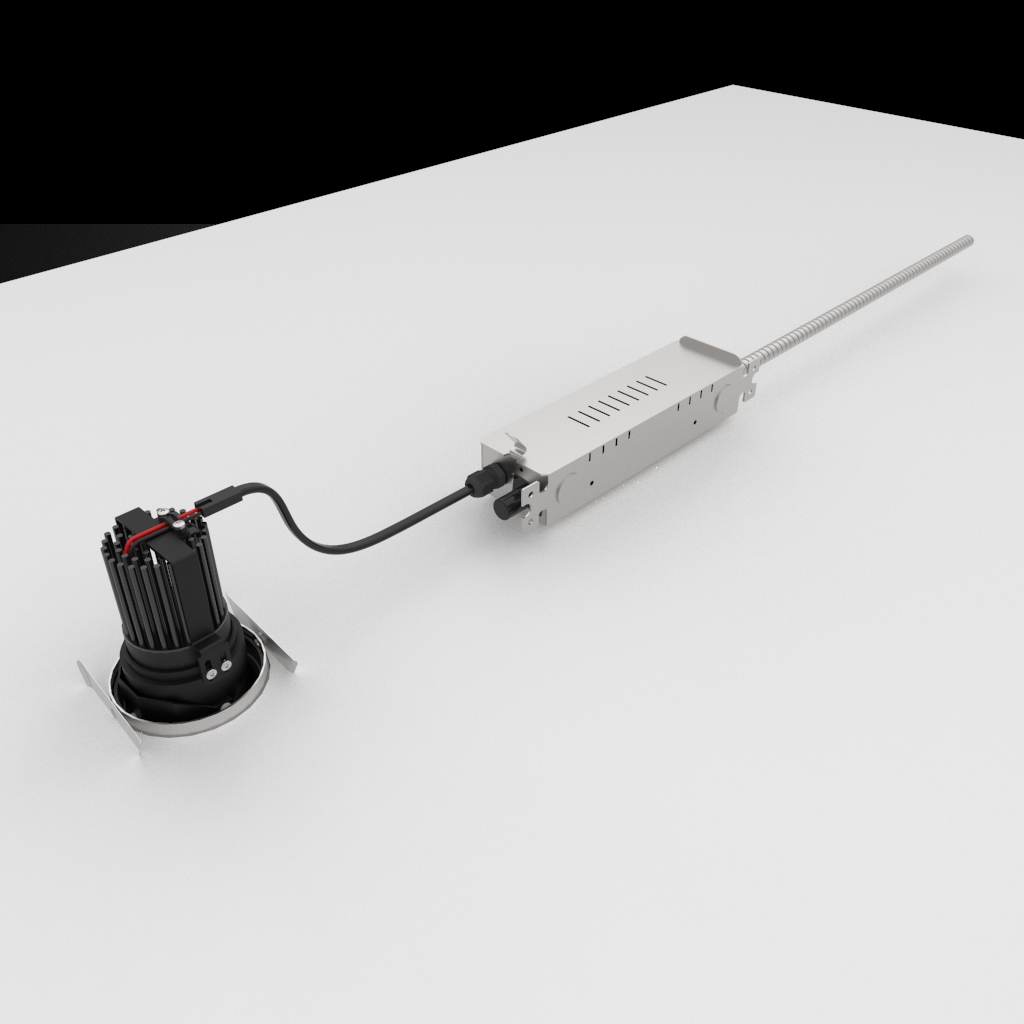

The all NEW EasyFit housing for retrofit installations into existing ceilings. Simple to install method allows installation from below the ceiling. A remote driver box and a plug and play tethered power supply.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

  • Aperture:Ø1.65"
  • Overall Dimension:Ø4.25"
  • Ceiling Cut Out:Ø3.86"
  • First Fix Requirement:Yes
  • Location:Interior / Damp

Available light sources

Light source: LED50 ONE GEN2

Introducing the LED50 ONE Generation 2. Choice of 3 colour temperatures and 3 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

  • LED Power:11.6W
  • Source Luminous Output*:1078-1206lm
  • Drive Current:350mA
  • Input Voltage:33V
  • CCT:2700K/3000K/4000K
  • Beam Option:12°/24°/38°/55°
  • CRI:90 CRI
  • Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A31413-WW-LED-PC

Light source: LED50 ONE / ULTRA

Introducing the LED50 ONE / ULTRA. Single optic high output 98CRI LED. Choice of 2 colour temperatures and 3 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

  • LED Power:11.6W
  • Source Luminous Output:915-982lm
  • Drive Current:350mA
  • Input Voltage:33V
  • CCT:2700K/3000K
  • Beam Option:12°/24°/38°/55°
  • CRI:98 CRI
  • Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A31413-WW-LED-PC
