EasyFit Edge4.25" Fixed Trimless → Lucent Lighting

EasyFit Edge4.25" Fixed Trimless

EasyFit Edge4.25" fixed downlight with Ø1.65" black Edge aperture and supplied with a separate mud in kit for seamless appearance in plaster/drywall ceilings. Available in both white or black finish as standard.

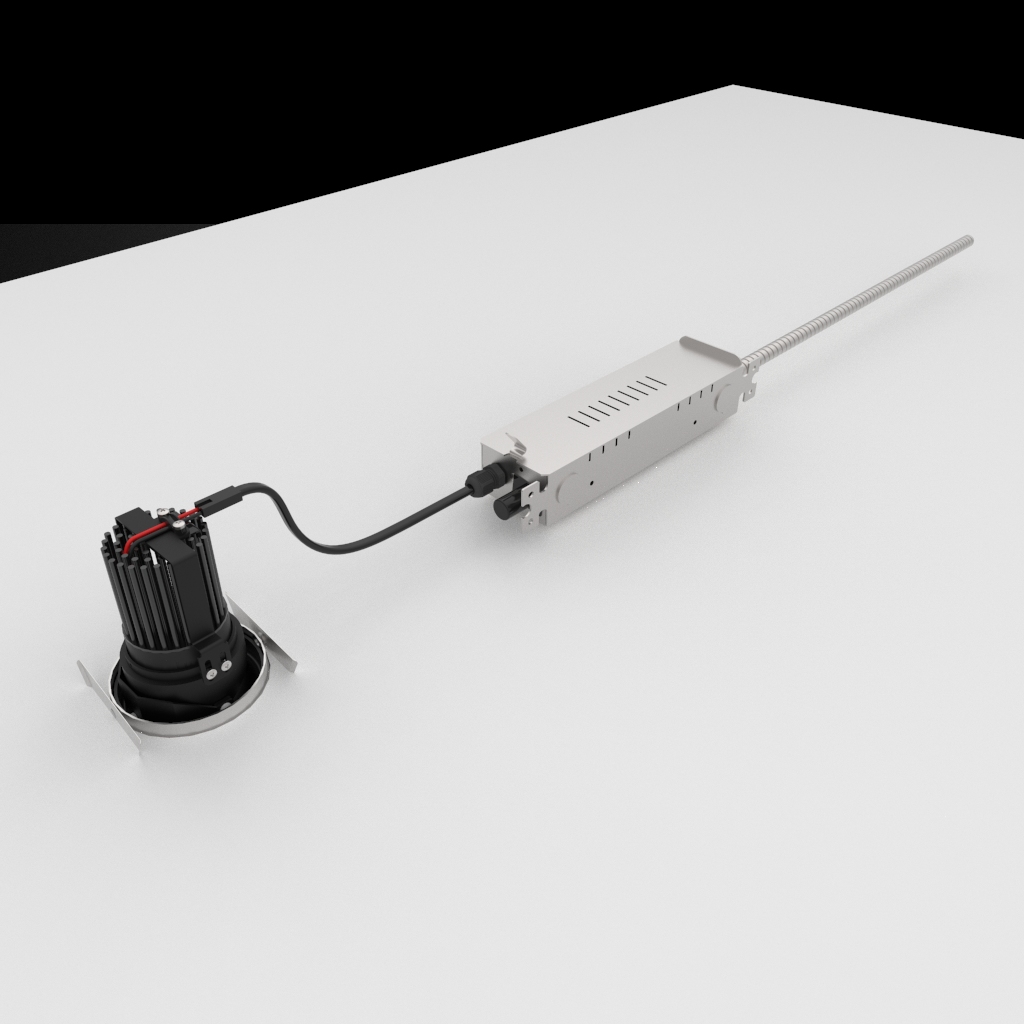

The all NEW EasyFit housing for retrofit installations into existing ceilings. Simple to install method allows installation from below the ceiling. A remote driver box and a plug and play tethered power supply.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

Aperture:Ø1.65"
Overall Dimension:Ø4.25"
Ceiling Cut Out:Ø3.86"
First Fix Requirement:Yes
Location:Interior / Damp

Available light sources

Light source: LED50 ONE GEN2

Introducing the LED50 ONE Generation 2. Choice of 3 colour temperatures and 3 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

LED Power:11.6W
Source Luminous Output*:1078-1206lm
Drive Current:350mA
Input Voltage:33V
CCT:2700K/3000K/4000K
Beam Option:12°/24°/38°/55°
CRI:90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A31413-F-LED-PC

Light source: LED50 ONE / ULTRA

Introducing the LED50 ONE / ULTRA. Single optic high output 98CRI LED. Choice of 2 colour temperatures and 3 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

LED Power:11.6W
Source Luminous Output:915-982lm
Drive Current:350mA
Input Voltage:33V
CCT:2700K/3000K
Beam Option:12°/24°/38°/55°
CRI:98 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A31413-F-LED-PC
