EasyFit Duo Fixed Flange → Lucent Lighting

EasyFit Duo Fixed Flange

EasyFit Duo fixed downlight with Ø2.36" tapered black baffle and supplied with a separate installation kit with overlap flange for finished ceilings.

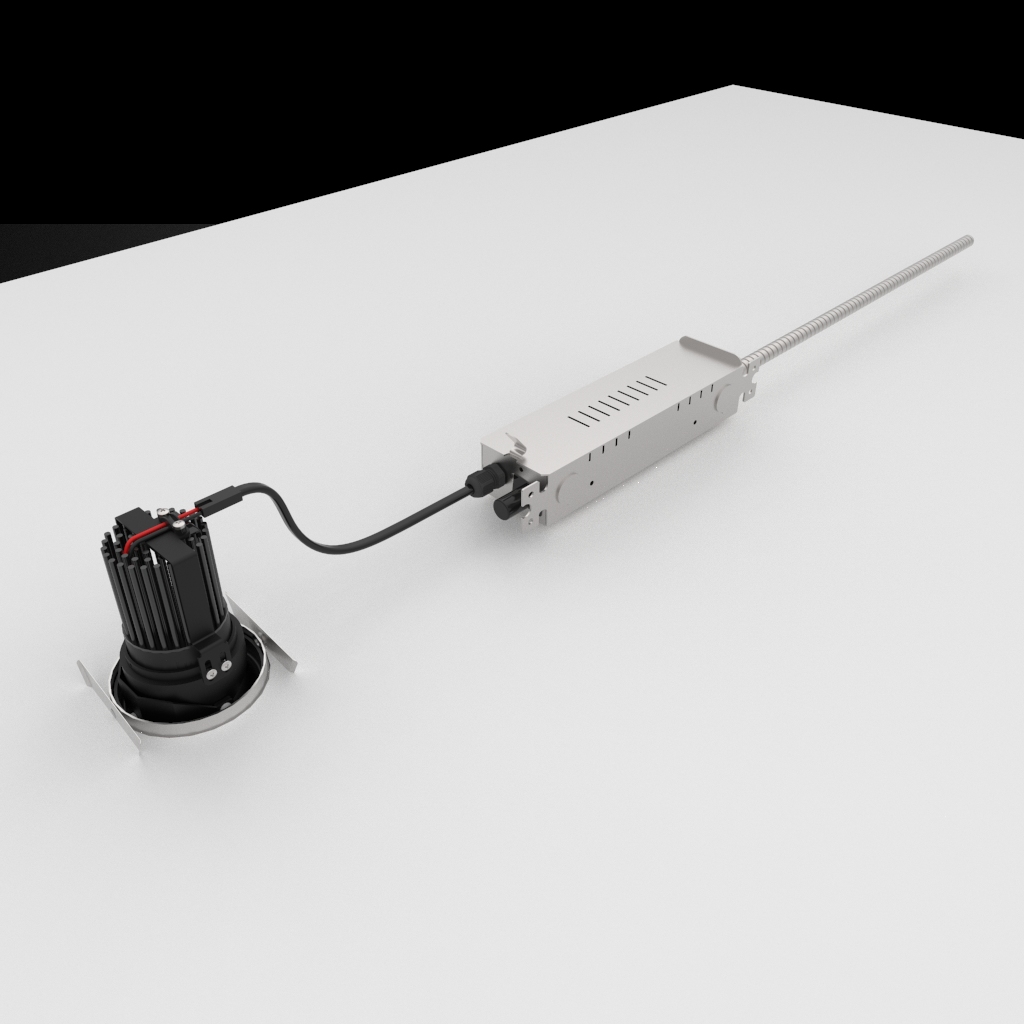

The all NEW EasyFit housing for retrofit installations into existing ceilings. Simple to install method allows installation from below the ceiling. A remote driver box and a plug and play tethered power supply.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

Aperture:Ø2.36"
Overall Dimension:Ø4.25"
First Fix Requirement:Yes
Ceiling Cut Out:Ø3.97"
Ceiling Thickness:1.00"
Ingress Protection:Interior / Damp / Wet

Available light sources

Light source: LED50 ONE GEN2

Introducing the LED50 ONE Generation 2. Choice of 3 colour temperatures and 3 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

LED Power:11.6W
Source Luminous Output*:1078-1206lm
Drive Current:350mA
Input Voltage:33V
CCT:2700K/3000K/4000K
Beam Option:12°/24°/38°/55°
CRI:90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A31600-LED-PB

Light source: LED50 ONE / ULTRA

Introducing the LED50 ONE / ULTRA. Single optic high output 98CRI LED. Choice of 2 colour temperatures and 3 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

LED Power:11.6W
Source Luminous Output:915-982lm
Drive Current:350mA
Input Voltage:33V
CCT:2700K/3000K
Beam Option:12°/24°/38°/55°
CRI:98 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A31600-LED-PB
