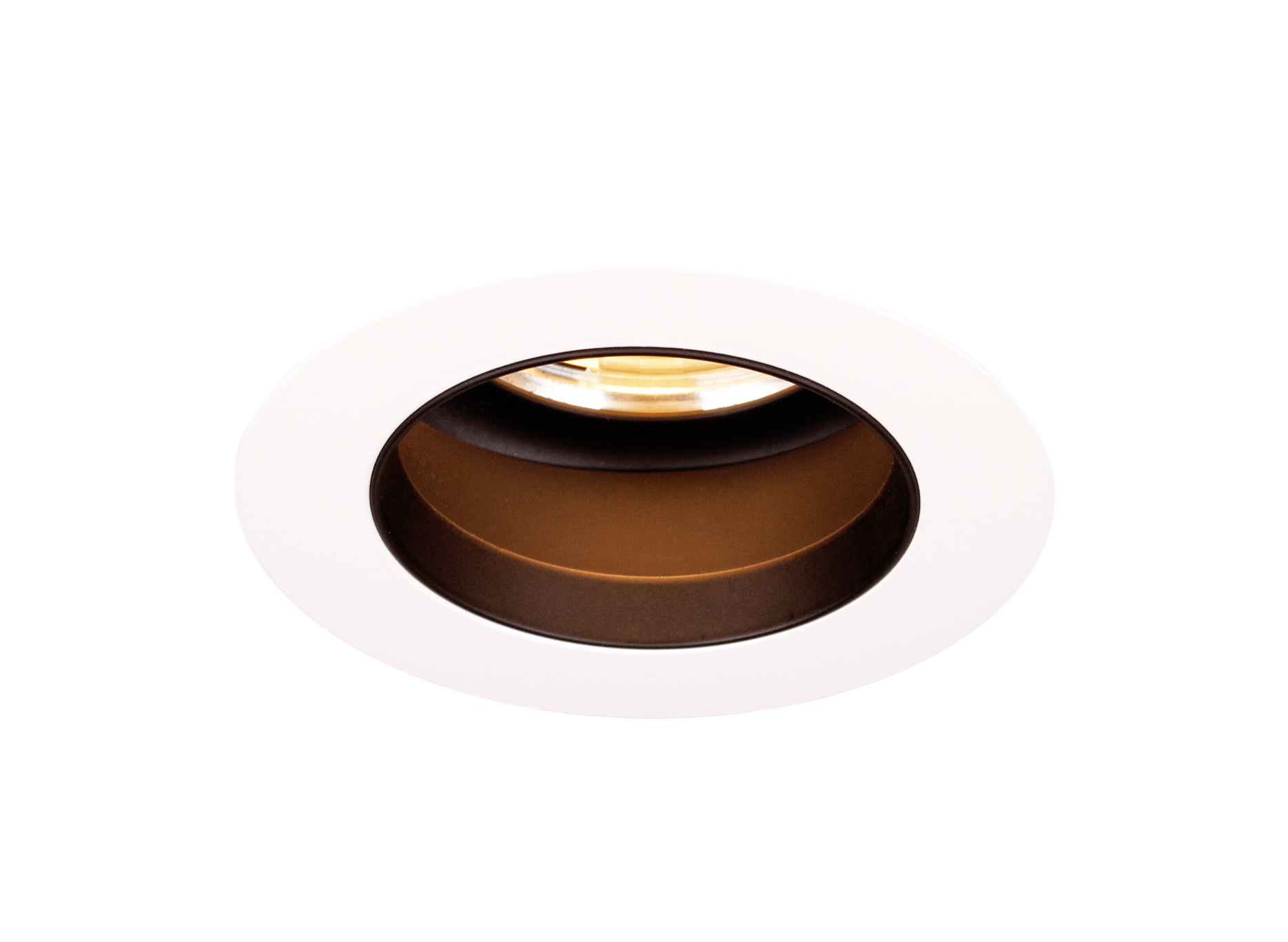

Duo Fixed Trimless

Duo fixed downlight with Ø2.36" tapered black baffle and supplied with a separate mud in for a seamless appearance in plaster/drywall ceilings.

This product can accommodate a wide choice of LED light sources including our LED50 ONE family of modules, Xicato and retrofit MR16 & GU10 LED lamps.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

Aperture:2.36"
Overall DImension:4.25"
First Fix Requirement:Yes
Ceiling Cut Out:3.78"
Ceiling Thickness:1.00"
Ingress Protection:Interior / Damp / Wet

Available light sources

Light source: LED50 ONE GEN2

Introducing the LED50 ONE Generation 2. Choice of 3 colour temperatures and 3 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

LED Power:11.6W
Source Luminous Output*:1078-1206lm
Drive Current:350mA
Input Voltage:33V
CCT:2700K/3000K/4000K
Beam Option:12°/24°/38°/55°
CRI:90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A31600-LED-PC

Light source: LED50 ONE / ULTRA

Introducing the LED50 ONE / ULTRA. Single optic high output 98CRI LED. Choice of 2 colour temperatures and 3 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

LED Power:11.6W
Source Luminous Output:915-982lm
Drive Current:350mA
Input Voltage:33V
CCT:2700K/3000K
Beam Option:12°/24°/38°/55°
CRI:98 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A31600-LED-PC

Light source: LED50 ONE SuperSpot

Our new addition to Lucents range of LED50 Modules. A 90 CRI LED50 ONE with 7° beam angle. With a choice of 3 colour temperatures. Designed to run at 350mA or 500mA depending on lumen output required. Fully dimmable with appropriate driver.

LED Power:5.75W
Source Luminous Output:299-464lm
Drive Current:500mA
Input Voltage:11.5V
CCT:2700K/3000K/4000K
Beam Option:7°
CRI:90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A31600-LED-PC

Light source: LED50 ONE Ambiance WarmDim

The ProSpex LED50 ONE Ambiance WarmDim from Lucent’s own LED51 series of modules. 50mm diameter LED Module. For use in all ProSpex and ProSpex Plus LED luminaires. Max drive current 500mA. Dimmable with the correct driver type.

LED Power:14.55W
Source Luminous Output:849-907lm
Drive Current:500mA
Input Voltage:29.1V
CCT:2700K-2000K / 3000K-2000K
Beam Option:28°/39°
CRI:Max 95 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: A31600-LED-PC

Light source: LED50 ONE TuneableWhite

The ProSpex LED50 ONE TuneableWhite from Lucent’s own LED50 series of modules. 2” (50mm) diameter single optic LED module. For use in all ProSpex and ProSpex Plus LED luminaires. Max drive Current 700mA per channel. CCT and Intensity can be controlled with correct driver/control system.

LED Power:12.5W per channel
Source Luminous Output:494-836lm
Drive Current:700mA per channel
Input Voltage:17.9V
CCT:5000K-2000K
Beam Option:25°/35°
CRI:Max 95 CRI
Dimming Options:DALI Type 6, DALI Type 8 and Bluetooth

Product Code: A31600-LED-PC
